Converting |
KMK Printing & Packaging Machinery, KMK-1100 GS, 2024 (Ref.:M5583)
Year: 2024 Size: 1100 mm
Price: on request
Carton board max. 800 gsm
corrugated fluted type: N, E, F
speed max. 400 m / min.
inching speed 10 m / min.
thickness of folded box. max. 20 mm
blank width: 1100 mm
Dimensions 15 x 1,70 x 1,90 m
Net weight 7,6 T
Electrical connected load 15 kW
compressed air 6 bar
air tank capacity
https://www.youtube.com/watch?v=9G5QLOqK |
|
|
Josef Foellmer, IRAM 400/4, 1991 (Ref.:M6188)
Year: 1991 Size: 98 x 60 cm
Price: on request
- **Drill diameter**: 3-10 mm (optional up to 22 mm)
- **Drilling depth**: Max. 70 mm
- **Spindle distance**: Adjustable between 45 mm and 540 mm
- **Hole spacing**: Min. 3 mm, Max. 800 mm
- **Table size**: 98 x 60 cm
- **Additional features**: Drill length compensation, cooling/lubrication, speed regulation |
|
|
|
|
KMK Printing & Packaging Machinery, KMK PCS 1200, 2024 (Ref.:M6347)
Year: 2024
Price: on request
Paper material: Cardboard 210-800gsm, A/B/E A/B/E Flute
Max. speed: 260m/min
Max. thickness of folded box: 12mm
Way of folding: 180° Fold 2 and fold 4 are 180°
Power supply: 3P 380V 50HZ
Blank width: 1200mm
Length x Width x Height: 14 x 1.9 x 1.7m
Net weight: 6.5T
Total power: 20kW
Straight Line Box: Model 1200 type
Way of folding: Three carriers
B+C+D+E: 280-1200
C+D: 140
E (Min): 30 |
|
|
KMK Printing & Packaging Machinery, KMK 106-MTF, 2024 (Ref.:M5586)
Year: 2024 Size: 1060 x 770 mm
Price: on request
Max. Stapelhöhe Auslage: 1200 mm
Max. Stapelhöhe Anleger: 1350 mm
Hauptmotorleistung: 11 kW
Max. sheet size: 1060×770mm
Min. sheet size: 450×370mm
Max.die cutting size: 1050×750mm
Max.stamping size
: 1050×750mm
Gripper margin: 8-17mm |
|
|
KMK Printing & Packaging Machinery, KMK C-150, 2024 (Ref.:M6032)
Year: 2024 Size: 1510 × 1120 mm
Price: on request
Die cutting style: Flat to flat
Max. Die-cutting size: 1500 × 1100 mm
Max. Die-cutting pressure: 350 T
Paper processed
cardboard: 1-8 mm
Max. Die-cutting speed: 4500 sheets/h
Max. feeding pile height: 500 mm
Max. delivery pile height: 330 mm
Main motor power: 15 kW
Total power: 38 kW
Weight: 26 T
Dimensions: 11470 x 5000 x 2600 mm
With stripping unit
Max. Die-cutting size: 1500 × 1100 mm |
|
|
KMK Printing & Packaging Machinery, KMK-1050, 2024 (Ref.:M5587)
Year: 2024 Size: 560 x 350 mm
Price: on request
max. sheet size 1050 x 750 mm
min. sheet size 560 x 350 mm
max. working speed 800- 4.000 pcs / hour
max. printing area 1050 x 740 mm
size of screen frame 1300 x 1170 mm
paper weight 90-420 g/m
dimensions 4750 x 3060 x 1720 mm
https://www.youtube.com/watch?v=KuecXf-ZxjA |
|
|
KMK Printing & Packaging Machinery, KMK 72-UV, 2024 (Ref.:M5607)
Year: 2024 Size: 250 x 300 mm
Price: on request
with TC 800 UV dryer
with TC 800 S automatic stacker
max. size: 520 x 720 mm
min. size: 250 x 300 mm
framesize: 900 x 920 mm
speed: 400-2400 / Std.
power: 3 P 380 V 50 Hz 7W
weight: 3550 KG
dimensions 3250 x 2550 x 2080 |
|
|
KMK Printing & Packaging Machinery, KMK-1050, 2025 (Ref.:M6095)
Year: 2025 Size: 1050 x 750 mm
Price: on request
max. sheet size 1050 x 750 mm
min. sheet size 560 x 350 mm
max. working speed 800- 4.000 pcs / hour
max. printing area 1050 x 740 mm
size of screen frame 1300 x 1170 mm
paper weight 90-420 g/m
dimensions 4750 x 3060 x 1720 mm
Video in production: https://www.youtube.com/watch?v=Ww7rlEZjqo8 |
|
|
|
|
KMK Printing & Packaging Machinery, KMK LK 106-M, 2024 (Ref.:M6035)
Year: 2024 Size: 400 x 370 mm
Price: on request
Gewicht: 16.000 kg
Luftanforderung: 0.6 Mpa, 0.37 m3/min
Dimensionen: 5050 × 4200 × 2260 mm
Max. sheet size: 1060×770 mm
Min. sheet size: 400×370 mm
Max.die cutting size: 1050×750 mm
Gripper margin: 8-17 mm
Paper range: 90-2000 g/m2 (cardboard) 0.1-2 mm (cardboard) <_4mm (corrugated)
Maximum cutting force: |
|
|
KMK, AEM-800Q, 2024 (Ref.:M6269)
Year: 2024 Size: 800×620 mm
Price: on request
Technical details:
Max. Sheet Size
800×620 mm
Min. Sheet Size
340×280 mm
Feeding Pile Height
1150mm
Delivery Pile Height
1000mm
Max. Die-Cutting Size
770×600 mm
Inner Chase Size
820×628 mm
Die Cutting Plate Size |
|
|

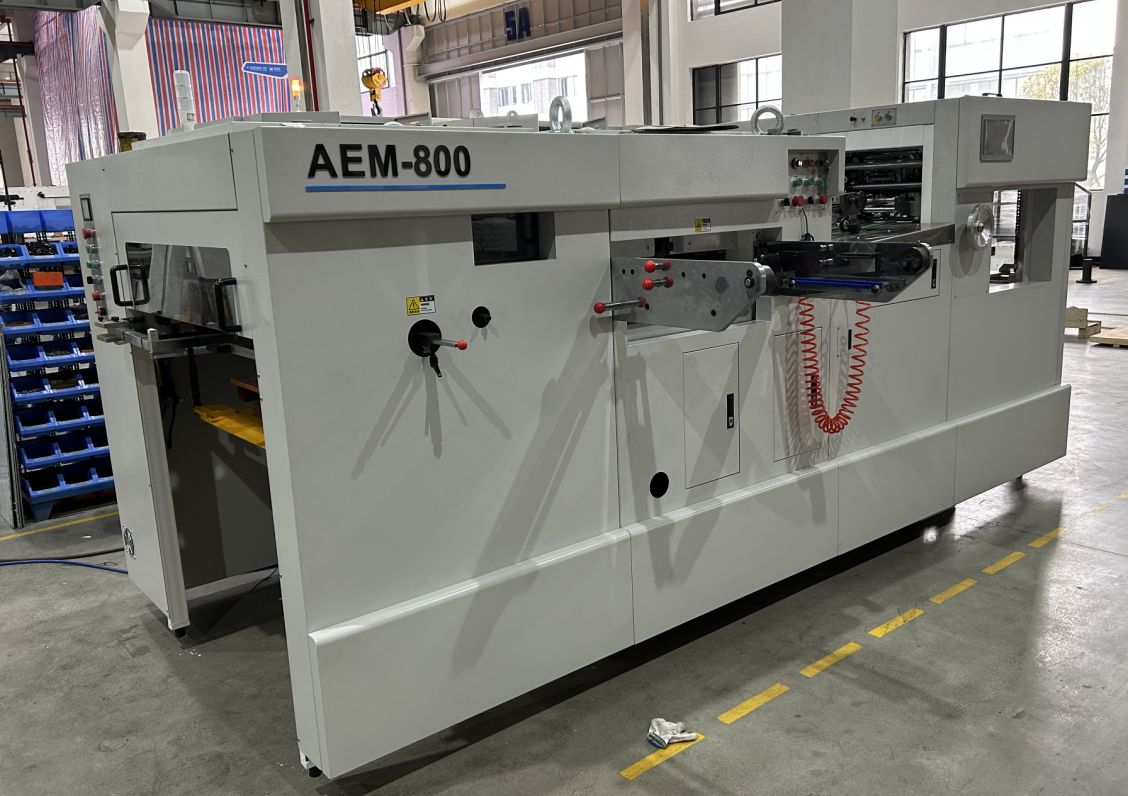

KMK, AEM-800, 2025 (Ref.:M6594)
Year: 2025 Size: 800×620 mm
Price: on request
Technical details:
Max. Sheet Size
800×620 mm
Min. Sheet Size
340×280 mm
Feeding Pile Height
1150mm
Delivery Pile Height
1000mm
Max. Die-Cutting Size
770×600 mm
Inner Chase Size
820×628 mm
Die Cutting Plate Size |
|
|
|
|
KMK, KMK-580B, 2017 (Ref.:M6444)
Year: 2017 Size: 580 x 740 mm Impression: 1000 h worked
Price: on request
max. sheet size 580 x 740 mm
min. sheet size 210 x 210 mm
material weight sheet thickness 105 - 500gsm
speed 30 - 50 m / min.
dimensions 3660 x 1278 x 1780 mm |
|
|
KMK Printing and Packaging Machinery, KPZ1300 UV Varnishing, 2024 (Ref.:M6453)
Year: 2024 Size: 1280 x 1650 mm
Price: on request
Max. Coating Width: 1300 mm
Max. sheet size: W1280 mm x L1650 mm
Min. sheet size: W320 mm x L400 mm
Feeder/Stacker piling height: 1360/1300 mm
Sheet thickness: 80-500 g/m²
Max. working speed: 100 m/min or 7000 sheets/h
Installed power: 76 kW
Total weight: 8600 kg
Overall dimensions: 14.1 × 2.2 × 2.2 m
1. Auto Feeder:
The speed of the paper feeder can rea
feeder can move forward and backward, facilitating large and small-size paper feeding. Four suction
and four delivery, Feeder head, paper st |
|
|
KMK Printing and Packaging, KPZ1100 UV Varnishing, 2024 (Ref.:M6422)
Year: 2024 Size: 1080x1200 mm
Price: on request
Minimal 320x290 mm
Sheet Thickness 80-500gsm
Piling Height 1300 mm
Maximum Speed 100 m/min
Weight 7500kg
Power 65 kW
Dimension 12.4x2x2 m
Maximal 1080x1200 mm
1. Auto Feeder:
The speed of the paper feeder can rea
feeder can move forward and backward, fa
and four delivery, Feeder head, paper straightness can reach ±2mm.
Whole machine electrical: |
|
|
KMK Printing & Packaging Machinery, KMK S-450, 2024 (Ref.:M6360)
Year: 2024
Price: on request
The biggest size box: 450x200mm
Machine dimension: 2100x2000mm
Weight: 500KG
Voltage: 220V/50Hz
Power: 1.2KW
+ Related Accessories:
Pre-feeding Device
Spraying System: Equipped with three guns, convenient in the production of 4/6 corner box and
various special-shaped box, gluing quick
Plasma Processor: Through surface coating treatment, to strengthen the adherence and make cartons
easier to be gluid. |
|
|
Desta, BAS-FSA 800, 2000 (Ref.:M6689)
Year: 2000 Size: 800 x 200 mm
Price: on request
Product thickness max. 8 mm
Formats max. working width x 320 mm
min. 100 x 80 mm
Stack height max. 400 mm
Pressure 0 – 20 000 N, continuously adjustable
Speed 50 – 180 m/min., continuously adjustable
Infeed height 450 – 950 mm, adjustable
Delivery height 875 mm
Power 1.0 kW, 230/400 V, 50/60 Hz
Control plug connection for the connection
to various folding machines /
saddle stitcher |
|
|
MKW, Rapid UT 35 x 64, 2008 (Ref.:M6484)
Year: 2008 Size: 35 x 64 cm
Price: on request
MKW Rapid UT 35 x64 – High-Performance Brochure Production System
The MKW Rapid UT 35 x64 is a state-of-the-art post-press machine designed for the efficient
production of brochures. With its precise and robust construction, it ensures reliable and
high-quality processing of printed materials.
Features and Specifications:
- Stitching Unit – Ensures precise wire stitching for brochures of various formats.
- Folding Unit – Provides accurate folding for a perfect final product.
- Front Trimming Unit – Performs the final trim for clean edges and a professional finish.
- High Speed and Automation – Ideal for
- User-Friendly Control Panel – Easy ope
- Precise Format Processing – Supports a wide range of paper sizes and thicknesses for maximum
flexibility. |
|
|
MWT, Octoplus US 3000, 2010 (Ref.:M6485)
Year: 2010 Size: 50 x 35 cm
Price: on request
MWT OCTOPLUS US 3000 – High-Performance Brochure Production System
The MWT OCTOPLUS US 3000 is an advanced post-press machine designed for efficient and high-quality
brochure production. Its robust construction and precision engineering ensure seamless processing of
printed materials with maximum reliability.
Features and Specifications:
- Stitching Unit – Ensures precise wire stitching for various brochure formats.
- Folding Unit – Provides accurate folding for a perfect final product.
- Front Trimming Unit – Performs precise trimming for clean edges and a professional finish.
- High-Speed Processing – Optimized for high-volume production with minimal downtime.
- Modular Design – Allows for easy customization and integration into existing workflows.
- User-Friendly Interface – Simple opera
adjustments.
- Versatile Format Handling – Supports a wide range of paper sizes and thicknesses.
Applications:
- Magazines, brochures, catalogs |
|
|
Sure, Paper Drill 25, (Ref.:M6154)
Size: 50 mm
Price: on request
- Model: Sure Paper Drill 25
- Type: Paper drilling machine with 2 spindles
- Drill spacing: Adjustable between the spindles
- Max. drill diameter: 10 mm
- Max. pile height: 50 mm
- Max. drilling depth: 60 mm (adjustable)
- Drilling depth: Fine adjustment via stop
- Paper guides: Adjustable front and side gauges
- Table: Stable and height-adjustable
- Drilling stroke: Manual via hand lever
- Drilling speed: Constant
- Power supply: 230 V / 50 Hz
- Dimensions (approx.): 60 × 50 × 80 cm (L×W×H)
- Weight: approx. 50 kg
- Condition: Used, fully functional |
|
|
Nagel, Multinak S, (Ref.:M6692)
Price: on request
Number of stitching heads: 2
Distance between stitching heads: 80 - 155 mm variable
Booklet stitching: from 2 sheets
Block stapling: up to 150 sheets |
|
|
|
|
Shoei Star, Little Mach, 1993 (Ref.:M6411)
Year: 1993 Size: 50cm
Price: on request
- Max. paper size: 470 x 650 mm
- Min. paper size: 120 x 135 mm
- Max. paper weight: 250 g/m²
- Min. paper weight: 40 g/m²
- Working width: Up to 50 cm
- Vacuum suction feed
- Flat pile feeder
- Noise protection cover
- Digital control panel with programs
- Two folding pockets
- Sheet counter
- Optional additional equipment: Creasin
- Speed: Up to 40,000 sheets per hour
- Power supply: 380 V, 50/60 Hz |
|
|
|
|
Stahl, Ti 40/4-SAK, 2006 (Ref.:M6540)
Year: 2006 Size: 400 x 650 mm
Price: on request
Feeder
Feeder Mode: Flat pile feeder
Type: FI-40
Control Unit: DCT 500
Folding Units
1st unit
Type: Ti-40
Year: 2004
Pockets: 4
Pocket Type: Combi folding plates
Pocket Configuration: manual
Rollers Configuration: manual
Roller condition: used condition
Noise Protection Hood
Serial number: FH.FANF-00226 |
|
|
|
|
|
|

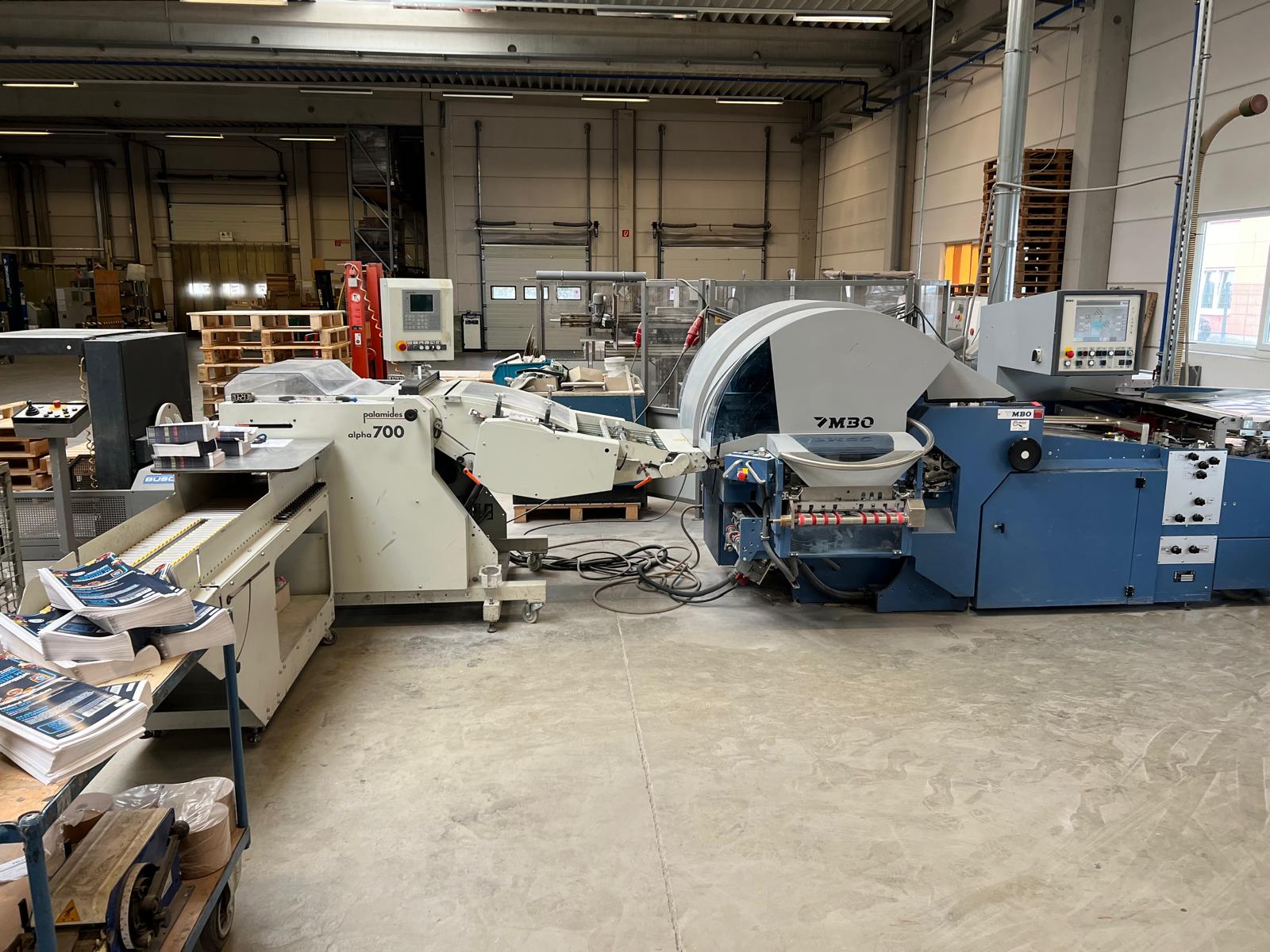

MBO, K 800.2 S-KTL/6, 2009 (Ref.:M6625)
Year: 2009 Size: 780 x 1.200 mm
Price: on request
6 pockets
VACULIFT III
Control Unit: Navigator-Control with touch screen
Folding Units
1st unit
Pockets: 6x
Cross fold unit with 2x knives
Second Knife aligned to: Left
1x Side pocket
Noise Protection Hood
with Palamides Alpha 700, age: 2007, stack delivery |
|
|

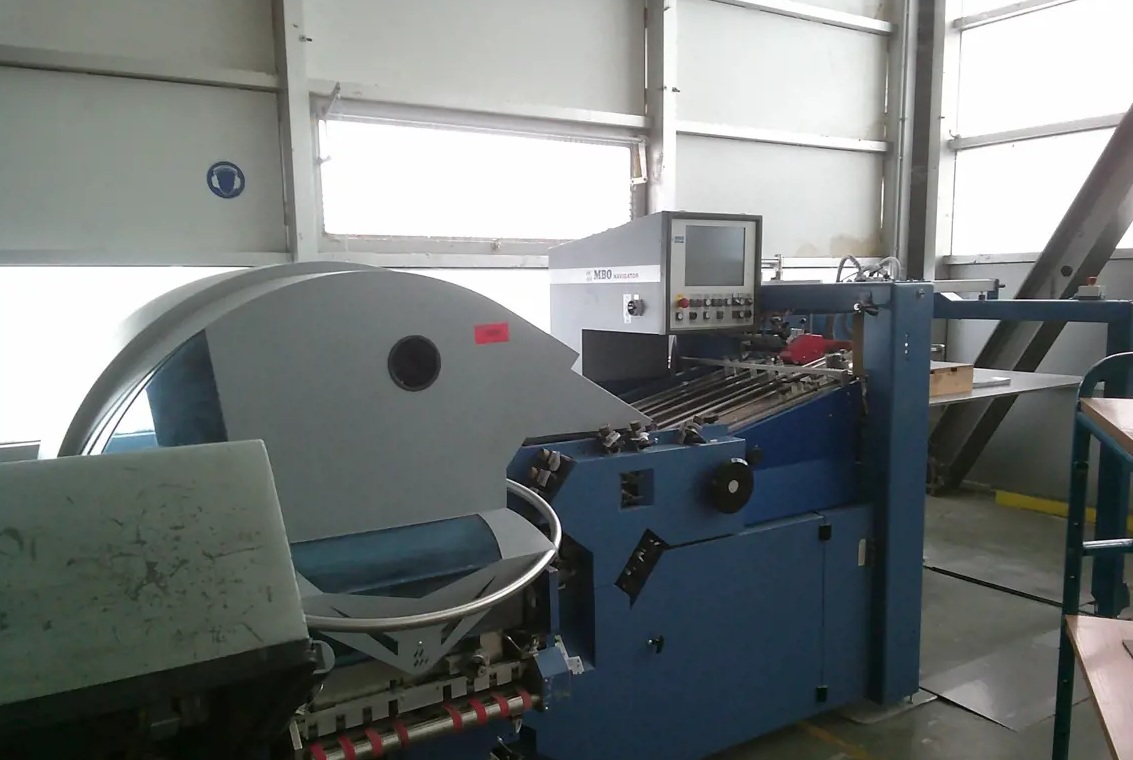

MBO, K 800.2 S-KTL/ T6, 2001 (Ref.:M6630)
Year: 2001 Size: 780 x 1.200 mm
Price: on request
- Manufacturer: MBO
- Model: K 800.2 S-KTL/6
- Machine type: Folding machine (combi folder)
- Maximum width: 78–80 cm (series 800)
- Typical application: High-performance folding for medium to large format sheets
- Features: 6 folding pockets, KTL version (combination of buckle and knife folding), high
productivity, precise folding results
- Field of use: Industrial printing companies, finishing operations |
|
|

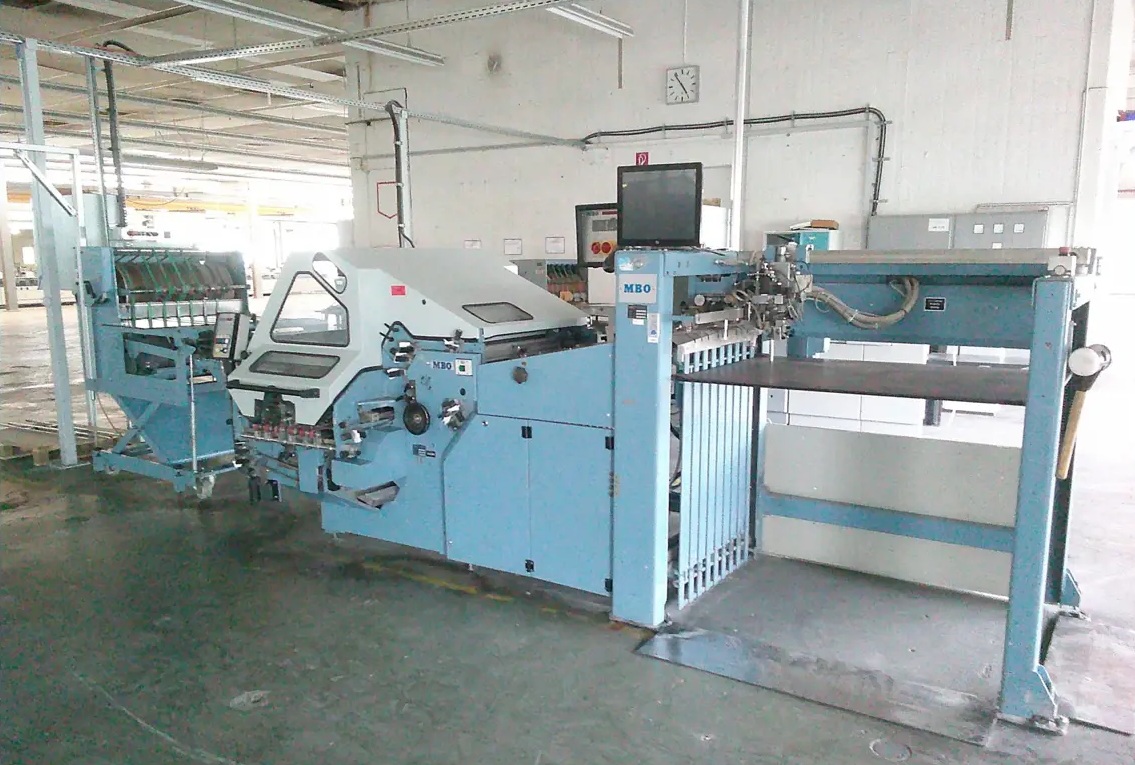

MBO, K 820-4 KTLT, 1996 (Ref.:M6631)
Year: 1996 Size: 820 mm
Price: on request
- Manufacturer: MBO
- Model: K 820-4KTLT
- Machine type: Folding machine (combi folder)
- Maximum width: 82 cm
- Typical application: High-performance folding for large format printing sheets
- Features: 4 folding pockets, KTLT version (combination of buckle, knife and cross folding), high
production speed, precise folding results
- Field of use: Industrial printing companies, large-format finishing operations |
|
|
Heidelberg, TH 82/6-4-2 - RFH, 2007 (Ref.:M6677)
Year: 2007 Size: 820 mm
Price: on request
Machine: Heidelberg Stahlfolder TH 82/6-4-2 RFH
Year: 2007
Machine Number: FH.HACO-00951
Location: Germany
Condition: Dismantled
Feeding:
- Rotary Feeder: RFH-82
Folding Units:
- 1st Unit: 6 Buckle Plates (82 cm) – au
- 2nd Unit: 4 Buckle Plates (66 cm) – au
- 3rd Unit: 2 Buckle Plates (56 cm) – automatic setting
Delivery: |
|
|
Nagel, Docufold, 2004 (Ref.:M6071)
Year: 2004 Size: 674 x 365 mm
Price: on request
- **Maximum paper size**: 674 mm x 365 mm
- **Minimum paper size**: 140 mm x 148 mm
- **Maximum paper weight**: 240 g/m² (depending on material)
- **Minimum paper weight**: 60 g/m²
- **Speed**: Up to 27,000 A4 sheets per hour (depending on material and fold type)
- **Load capacity**: Up to 500 sheets
- **Electrical requirements**: 240V, 50/60 Hz
- **Dimensions**: 1240 mm x 555 mm x 1360 mm
- **Weight**: 118 kg |
|
|
|
|
MBO, T800, 2008 (Ref.:M6599)
Year: 2008 Size: 780 x 1.200 mm
Price: on request
T 800.1-1 78/6 6 x pockets
T 800.1-2 68/4 4 x pockets
T 800.1-3 56/2 2 x pockets |
|
|
|
|
|
|
Stahl, TI 52, 2004 (Ref.:M6629)
Year: 2004 Size: 52cm
Price: on request
- Manufacturer: Stahl
- Model: TI 52
- Machine type: Folding machine
- Maximum width: 52 cm
- Typical application: Folding of printing sheets in small to medium formats
- Features: robust, versatile, compact design
- Field of use: Commercial printing companies, bookbinding shops |
|
|
|
|
Heiber + Schröder, WP 1400 matic, 2003 (Ref.:M6483)
Year: 2003 Size: 80 - 1400 mm
Price: on request
einbahniger Betrieb:
Länge A 100 mm - 1240 mm
Breite B 80 mm - 1400 mm
Länge Fenster/Futterstoff C 60 mm - 720 mm
Breite Fenster / Futterstoff D 30 mm - 1140 mm
zweibahniger Betrieb:
Länge A 100 mm - 1180 mm
Breite B 80 mm - 660 mm
Länge Fenster/Futterstoff C 60 mm - 720 mm
Breite Fenster / Futterstoff D 30 mm |
|
|
KMK Printing & Packaging Machinery, KMK XY-B 530, 2024 (Ref.:M6309)
Year: 2024 Size: 450 x 650 mm
Price: on request
KMK XY-B Series Medium Speed Flexo Printing Die Cutting & Slotting Machine
Max. speed (pieces/minute): 80
Running speed (pieces/minute): 80
Max. feeding size (mm): 1600*2200/2400/2600/2800
Min. feeding size (mm): 450*650
Skip feeding size (mm): 1800*2200/2400/2600/2800
Thickness of paperboard (mm): 1.8-12
Color register (mm): ± 0.5 -± 1
Max. printing size (mm): 1600*2000/2200/2400/2600
Thickness of print plate (mm): 7.2
Printing roll axial adjust (mm): ± 5
Min. slotting distance (mm):
Electrical slotting: 300*100*300*100
Manual slotting: |
|
|
KMK Printing & Packaging Machinery, KMK XY-B 480, 2024 (Ref.:M6308)
Year: 2024 Size: 400 x 650 mm
Price: on request
KMK XY-B Series Medium Speed Flexo Printing Die Cutting & Slotting Machine
Max. speed (pieces/minute): 80
Running speed (pieces/minute): 80
Max. feeding size (mm): 1400*2200/2400/2600/2800
Min. feeding size (mm): 400*650
Skip feeding size (mm): 1600*2200/2400/2600/2800
Thickness of paperboard (mm): 1.8-12
Color register (mm): ± 0.5 -± 1
Max. printing size (mm): 1400*2000/2200/2400/2600
Thickness of print plate (mm): 7.2
Printing roll axial adjust (mm): ± 5
Min. slotting distance (mm):
Electrical slotting: 300*100*300*100
Manual slotting: |
|
|
KMK Printing & Packaging Machinery, KMK XY-B 400, 2024 (Ref.:M6307)
Year: 2024 Size: 350 x 650 mm
Price: on request
KMK XY-B Series Medium Speed Flexo Printing Die Cutting & Slotting Machine
Max. speed (pieces/minute): 100
Running speed (pieces/minute): 80
Max. feeding size (mm): 1200*2200/2400/2600/2800
Min. feeding size (mm): 350*650
Skip feeding size (mm): 1400*2200/2400/2600/2800
Thickness of paperboard (mm): 1.8-12
Color register (mm): ± 0.5 -± 1
Max. printing size (mm): 1200*2000/2200/2400/2600
Thickness of print plate (mm): 7.2
Printing roll axial adjust (mm): ± 5
Min. slotting distance (mm):
Electrical slotting: 300*100*300*100
Manual slotting: |
|
|
KMK Printing & Packaging Machinery, KMK 1500-BMY, 2024 (Ref.:M6031)
Year: 2024 Size: 1510 x 1100 mm
Price: on request
Die cutting style: Flat to flat
Max. paper size: 1510 × 1100 mm
Min. paper size: 550 × 550 mm
Max. Die-cutting size: 1500 × 1100 mm
Max. Die-cutting pressure: 350 T
Paper processed
cardboard: 1-9 mm
Max. Die-cutting speed: 4500 sheets/h
Max. feeding pile height: 1400 mm
Max. delivery pile height: 1200 mm
Main motor power: 11 kW
Total power: 17 kW
Weight: 17.8 T
Dimensions: 6300 x 4500 x 2500 mm
YouTube-Link: https://youtu.be/PaNQQakC |
|
|
KMK Printing & Packaging Machinery, KMK XY-HD 1-5 920, 2024 (Ref.:M6328)
Year: 2024 Size: 900 x 2150 mm
Price: on request
KMK XY-HD 5+1 High definition flexo printer die cutter machine
Max. print size: 900*2000
Max. feed size: 900*2150
Skip feed size: 1100*2150
Min. board width: 270
Print cliché thickness: 3.94-7.2mm
Color register: ±0.5mm
Equipment:
Lead edge feeder unit: 1
Printer unit (ceramic roller + rubber ro
Printer unit (ceramic roller + doctor bl
Dryer unit (IR): 1
Varnish unit (IR): 1
Dryer unit: 1 |
|
|
KMK Printing & Packaging Machinery, KMK XY-HD 1-5 1224, 2024 (Ref.:M6329)
Year: 2024 Size: 1200 x 2550 mm
Price: on request
KMK XY-HD 5+1 High definition flexo printer die cutter machine
Max. print size: 1200*2400
Max. feed size: 1200*2550
Skip feed size: 1400*2550
Min. board width: 350
Print cliche thickness: 3.94-7.2mm
Color register: ±0.5mm
Equipment:
Lead edge feeder unit: 1
Printer unit (ceramic roller + rubber ro
Printer unit (ceramic roller + doctor blade): 4
Dryer unit (IR): 1
Varnish unit (IR): 1 |
|
|
KMK Printing & Packaging Machinery, KMK XY-H 120-300, 2024 (Ref.:M6320)
Year: 2024 Size: 270 x 600 mm
Price: on request
KMK XY-H 120 Series High Speed Flexo Printing Rotary Cutting & Slotting Machine
Max. speed (pieces/minute): 150
Running speed (pieces/minute): 120
Max. feeding size (mm): 900*2200/2400/2600/2800
Min. feeding size (mm): 270*600
Skip feeding size (mm): 1100*2200/2400/2600/2800
Thickness of paperboard (mm): 1.8-12
Color register (mm): ± 0.5 -± 1
Max. printing size (mm): 900*2000/2200/2400/2600
Thickness of print plate (mm): 7.2
Printing roll axial adjust (mm): ± 5
Min. slotting distance (mm):
Electrical slotting: 300*100*300*100
Manual slotting: |
|
|
KMK Printing & Packaging Machinery, KMK XY-H 120-530, 2024 (Ref.:M6322)
Year: 2024 Size: 450 x 650 mm
Price: on request
KMK XY-H 120 Series High Speed Flexo Printing Rotary Cutting & Slotting Machine
Max. speed (pieces/minute): 120
Running speed (pieces/minute): 120
Max. feeding size (mm): 1600*2200/2400/2600/2800
Min. feeding size (mm): 450*650
Skip feeding size (mm): 1800*2200/2400/2600/2800
Thickness of paperboard (mm): 1.8-12
Color register (mm): ± 0.5 -± 1
Max. printing size (mm): 1600*2000/2200/2400/2600
Thickness of print plate (mm): 7.2
Printing roll axial adjust (mm): ± 5
Min. slotting distance (mm):
Electrical slotting: 300*100*300*100
Manual slotting: |
|
|
KMK Printing & Packaging Machinery, KMK XY-H 120-400, 2024 (Ref.:M6321)
Year: 2024 Size: 350 x 650 mm
Price: on request
KMK XY-H 120 Series High Speed Flexo Printing Rotary Cutting & Slotting Machine
Max. speed (pieces/minute): 150
Running speed (pieces/minute): 120
Max. feeding size (mm): 1200*2200/2400/2600/2800
Min. feeding size (mm): 350*650
Skip feeding size (mm): 1400*2200/2400/2600/2800
Thickness of paperboard (mm): 1.8-12
Color register (mm): ± 0.5 -± 1
Max. printing size (mm): 1200*2000/2200/2400/2600
Thickness of print plate (mm): 7.2
Printing roll axial adjust (mm): ± 5
Min. slotting distance (mm):
Electrical slotting: 300*100*300*100
Manual slotting: |
|
|
KMK Printing & Packaging Machinery, KMK XY-H 400, 2024 (Ref.:M6325)
Year: 2024 Size: 350 x 650 mm
Price: on request
High speed flexo printing die cutting with
slotting machine (Separate Lead Edge)
Max. speed (pieces/minute): 200
Running speed (pieces/minute): 0-200
Max. feed size (mm): 1200*2200/2400/2600/2800
Min. feed size (mm): 350*650
Skip feeding size (mm): 1400*2200/2400/2600/2800
Max. printing size (mm): 1200*2000/2200/2400/2600
Thickness of Paperboard (mm): 1.8-12
Color register (mm): ± 0.5mm -± 0.75
Thickness of print plate: 7.2mm
Printing roll axial adjust: -± 5mm
Min. slotting distance (mm):
Electrical slotting: 300*100*300*100
Manual slotting: |
|
|
KMK Printing & Packaging Machinery, KMK XY-H 480, 2024 (Ref.:M6326)
Year: 2024 Size: 400 x 650 mm
Price: on request
High speed flexo printing die cutting with
slotting machine (Separate Lead Edge)
Max. speed (pieces/minute): 200
Running speed (pieces/minute): 0-200
Max. feed size (mm): 1400*2200/2400/2600/2800
Min. feed size (mm): 400*650
Skip feeding size (mm): 1600*2200/2400/2600/2800
Max. printing size (mm): 1400*2000/2200/2400/2600
Thickness of Paperboard (mm): 1.8-12
Color register (mm): ± 0.5mm -± 0.75
Thickness of print plate: 7.2mm
Printing roll axial adjust: -± 5mm
Min. slotting distance (mm):
Electrical slotting: 300*100*300*100
Manual slotting: |
|
|
KMK Printing & Packaging Machinery, KMK XY-H 300, 2024 (Ref.:M6324)
Year: 2024 Size: 270 x 600 mm
Price: on request
High speed flexo printing die cutting with
slotting machine (Separate Lead Edge)
Max. speed (pieces/minute): 250
Running speed (pieces/minute): 0-200
Max. feed size (mm): 900*2200/2400/2600/2800
Min. feed size (mm): 270*600
Skip feeding size (mm): 1100*2000/2400/2600/2800
Max. printing size (mm): 900*2000/2200/2400/2600
Thickness of Paperboard (mm): 1.8-12
Color register (mm): ± 0.5mm -± 0.75
Thickness of print plate: 7.2mm
Printing roll axial adjust: -± 5mm
Min. slotting distance (mm):
Electrical slotting: 300*100*300*100
Manual slotting: |
|
|
KMK Printing & Packaging Machinery, KMK XY-H 530, 2024 (Ref.:M6327)
Year: 2024 Size: 450 x 650 mm
Price: on request
High speed flexo printing die cutting with
slotting machine (Separate Lead Edge)
Max. speed (pieces/minute): 180
Running speed (pieces/minute): 0-150
Max. feed size (mm): 1600*2200/2400/2600/2800
Min. feed size (mm): 450*650
Skip feeding size (mm): 1800*2200/2400/2600/2800
Max. printing size (mm): 1600*2000/2200/2400/2600
Thickness of Paperboard (mm): 1.8-12
Color register (mm): ± 0.5mm -± 0.75
Thickness of print plate: 7.2mm
Printing roll axial adjust: -± 5mm
Min. slotting distance (mm):
Electrical slotting: 300*100*300*100
Manual slotting: |
|
|
KMK Printing & Packaging Machinery, KMK XY-H 150-2000, 2024 (Ref.:M6323)
Year: 2024 Size: 450 x 170 mm
Price: on request
KMK XY-H Series High Speed Mini Flexo Slotter Machine
Max. machine speed:
120 sheets/min
120 pieces/min
Length of printing roller: 1600 mm
Max. feeding size (L*W): 1700 x 600 mm
Min. feeding size (L*W): 450 x 170 mm
Min. slotting distance: 80 x 80 mm
Min. height of box (H): 60 mm
Dimension (Length*Width*Height): 3600 x 2100 x 1700 mm |
|
|
|
|
|
|
Heidelberg, Eurobind 600, 2007 (Ref.:M6487)
Year: 2007 Size: 320 x 440 mm
Price: on request
performance - up to 600 cycles per hour
binding - hot melt or pur perfect binding
milling unit - integrated milling system for precise spine preparation
gluing unit - hot melt and pur application system with precise dosing
feeding - automatic block feeding with alignment system
cover feeder - automatic unit with creasing station for precise cover positioning
pressing station - hydraulic press for uniform spine compression
control - digital user interface with programmable settings
application - industrial book production |
|
|
FKS, KB2000, 2009 (Ref.:M6644)
Year: 2009 Size: 320 × 310 mm
Price: on request
• Machine Type: Perfect Binder with single clamp
• Binding System: Hot melt gluing
• Cover Feeder: Manual cover feeder
• Design: With movable base frame
• Binding Length: max. 310 mm
• Book Thickness: max. 60 mm
• Production Speed: max. 320 books/hour
• Max. Format: 320 × 310 mm
• Weight: 186 kg
• Power Supply: 230 V
Machine Type: Perfect Binder (single cla |
|
|
Müller Martini, MONOSTAR 3016-18, 1998 (Ref.:M6681)
Year: 1998 Size: 420x305x60
Price: on request
Müller Martini Perfect Binding Line
Equipped with:
- Gathering Machine: Müller Martini Type 1571
- 12 stations
- Plus hand feeding station
- Transfer Element / Reject Gate: Müller Martini 3641
- Transfer Element to Binder: Müller Martini 3643
- Perfect Binder: Müller Martini 3016-18
- Machine No.: M-Mo. 94.02359
- Type MONOSTAR with 18 clamps
- Milling and notching station |
|
|
Müller Martini, STARBINDER 3006/18, 1996 (Ref.:M6682)
Year: 1996 Size: 420x305x60
Price: on request
Müller Martini Perfect Binding Line
Equipped with:
- Endsheet feeder
- Perfect Binder: Müller Martini 3006-18
- With stream cover feeder
- 18 clamps
- Book block feeder
- Hot-melt spine and side gluing with
- Spiral lay-down delivery or drying c
- Three Knife Trimmer: Müller Martini 36
- With cassettes for quick change |
|
|
Schneider, SF 80, 2004 (Ref.:M6571)
Year: 2004 Size: 360 mm
Price: on request
The SF-80 impresses in particular by the large pre-stacking capacity of around 450 mm.
The envelopes are stacked upright and separated by a special suction head.
The transport takes place without deformation of the material. |
|
|
KMK Printing & Packaging Machinery, KMK XY-C 2800-400, 2024 (Ref.:M6312)
Year: 2024 Size: 1200 x 2750 mm
Price: on request
KMK XY-C Series Chain Feeding Multicolor Printing Rotary Die-
Cutting With Slotting Machine
Diameter: 400
Feeding area (mm2): 1200*2750
Valid printing area (mm2): 1200*2600
Working speed (pieces/minute): 0-60
Min. feeding size (mm): 350*650
Thickness of cardboard (mm): 2-12 |
|
|
KMK Printing & Packaging Machinery, KMK XY-C 2800-530, 2024 (Ref.:M6314)
Year: 2024 Size: 1600 x 2750 mm
Price: on request
KMK XY-C Series Chain Feeding Multicolor Printing Rotary Die-
Cutting With Slotting Machine
Diameter: 530
Feeding area (mm2): 1600*2750
Valid printing area (mm2): 1600*2600
Working speed (pieces/minute): 0-60
Min. feeding size (mm): 450*650
Thickness of cardboard (mm): 2-12 |
|
|
KMK Printing & Packaging Machinery, KMK XY-C 2800-480, 2024 (Ref.:M6313)
Year: 2024 Size: 1400 x 2750 mm
Price: on request
KMK XY-C Series Chain Feeding Multicolor Printing Rotary Die-
Cutting With Slotting Machine
Diameter: 480
Feeding area (mm2): 1400*2750
Valid printing area (mm2): 1400*2600
Working speed (pieces/minute): 0-60
Min. feeding size (mm): 400*650
Thickness of cardboard (mm): 2-12 |
|
|
KMK Printing & Packaging Machinery, KMK XY-C 2800-700, 2024 (Ref.:M6316)
Year: 2024 Size: 2100 x 2750 mm
Price: on request
KMK XY-C Series Chain Feeding Multicolor Printing Rotary Die-
Cutting With Slotting Machine
Diameter: 700
Feeding area (mm2): 2100*2750
Valid printing area (mm2): 2100*2600
Working speed (pieces/minute): 0-60
Min. feeding size (mm): 600*650
Thickness of cardboard (mm): 2-12 |
|
|
KMK Printing & Packaging Machinery, KMK XY-C 2800-600, 2024 (Ref.:M6315)
Year: 2024 Size: 1800 x 2750 mm
Price: on request
KMK XY-C Series Chain Feeding Multicolor Printing Rotary Die-
Cutting With Slotting Machine
Diameter: 600
Feeding area (mm2): 1800*2750
Valid printing area (mm2): 1800*2600
Working speed (pieces/minute): 0-60
Min. feeding size (mm): 500*650
Thickness of cardboard (mm): 2-12 |
|
|
GUK, EK 420, 1989 (Ref.:M6064)
Year: 1989 Size: 420 mm
Price: on request
- **Model**: GUK EK 420
- **Year of Manufacture**: 1989
- **Max. Sheet Size**: 420 mm (16.5 inches)
- **Folding Capacity**: Multi-fold capability for different paper formats
- **Condition**: Used, in stock
- **Applications**: Suitable for folding brochures, leaflets, and various paper materials
- **Location**: Western Europe
- **Operation**: High-volume production, flexible in handling multiple fold patterns and paper types
- **Size Category**: Medium-format folding machine |
|
|
|
|
KMK Printing & Packaging Machinery, KMK HBJ-D1200, 2024 (Ref.:M6041)
Year: 2024
Price: on request
Production capacity: 80-320pcs/min
Suitable Material: 200-600g/m2 card paper, PE coated paper, kraft paper, corrugated paper
Length: 100-450 mm, degree: 5°- 40°
Width: 100-400 mm
Height: 15-200 mm
Total Power: 6.5 kW
Total Weight: 2.4T
Overall Dimension: 3600 x 1800 x 1700 mm
Power source: 380V 50HZ |
|
|
KMK Printing & Packaging Machinery, KMK BJDB, 2024 (Ref.:M6042)
Year: 2024
Price: on request
Production capacity: 80-150 pcs/min
Suitable Material: 200-600g/m2 card paper, PE coated paper, kraft paper, corrugated paper
Length: 100-450 mm, degree: 4°- 50°
Width: 100-380 mm
Height: 15-200 mm
Total Power: 7 kW
Total Weight: 2.4T
Overall Dimension: 3600 x 1850 x 1800 mm
Power source: 380V 50HZ |
|
|
|
|
Heidelberg, ST 450, 2006 (Ref.:M6600)
Year: 2006 Size: 520 x 740 mm
Price: on request
6 x up right Feeder Stations
2 x lying Feeder Station)
2 x Cover Feeder
1 x Stitching Unit
1 x Three Knife Trimmer
1 x Cross-Stacker, CHA. FJ.DKSA-0000058,age: 2006 |
|
|
Müller Martini, Bravo, 2000 (Ref.:M6674)
Year: 2000 Size: 460x320mm
Price: on request
Machine: Müller Martini Bravo Sammelhefter
Year: 2000
Serial Number: MMZO 279 108
Location: Germany
Condition: Dismantled
Feeding:
- 7x Vertical Feeders (370 mm)
- 1x Cover Feeder (1529 mm)
Stitching Unit:
- Type: Bravo
- 2x Stitching Heads
Trimmer: |
|
|
HOHNER, HSB 7000, 2009 (Ref.:M6673)
Year: 2009 Size: 390 x 350 mm
Price: on request
Manufacturer: Hohner
Model: HSB 7000
Year: 2009
Serial Number: 07.089
Max Format: 390 x 350 mm
Max Sheet Size (Manual Feed): 390 x 350 mm
Max Product Thickness: 4 mm |
|
|
Müller Martini, Prima, 1996 (Ref.:M6676)
Year: 1996 Size: 480x320mm
Price: on request
Machine: Müller Martini Prima Saddle Stitcher
Year: 1996
Location: Germany
Feeding:
- 4x Feeders (370 mm)
- 1x Cover Feeder (1529 mm)
- Upgradeable to 5 Stations (Feeder included)
Stitching Unit:
- Type: Prima
- 2x Stitching Heads
Trimmer:
- Type: Müller Martini 360 Three-Knife T |
|
|
Polar, 137 EMC-MONITOR, 1989 (Ref.:M6478)
Year: 1989 Size: 1370 x 1370 mm
Price: on request
- Model: Polar 137 EMC Monitor
- Cutting width: 137 cm
- Maximum cutting height: 165 mm
- Insertion depth: 1450 mm
- Maximum clamping pressure: 6000 daN
- Minimum cut length: 30 mm with program support
- Program memory: Up to 198 programs
- Display: Monitor for cutting settings and program information
- Drive system: Hydraulic
- Operation: Electronic control with touchscreen
- Safety features: Two-hand operation, s
- Weight: Approx. 4500 kg
- Dimensions: Approx. 3200 x 1800 x 1800 mm (L x W x H)
- Power supply: 400V, 50Hz
- Additional features: Optical cutting l |
|
|
Polar, 92 X, 2007 (Ref.:M6649)
Year: 2007 Size: 920 x 920 mm
Price: on request
• Model: Polar 92 X
• Type: Cutting Machine / Guillotine
• Year: 2007
• Format: 920 × 920 mm
• Equipment: Digital program, photocells, air table on the right and left
• Condition: Standard machine
• Suitable for precise cutting operations in post-press processing |
|
|
KMK Printing & Packaging Machinery, KMK XY-BFY 2000, 2024 (Ref.:M6310)
Year: 2024 Size: 2000 mm
Price: on request
Width of paper (mm): 2000
Max. speed of paper (m/min): 141
slitting cutting number: 3-5
Min. press line width (mm): 200
Min. pressure line width (mm): 200
Outer diameter of thin blade (mm): 260
Thickness of thin blade (mm): 1
Power (kW): 4
Weight (kg): 1200
Size of configuration (L*W*H): 2630*1791*1130 |
|
|
KMK Printing & Packaging Machinery, KMK XY-BFY 2500, 2024 (Ref.:M6311)
Year: 2024 Size: 2500 mm
Price: on request
Width of paper (mm): 2500
Max. speed of paper (m/min): 141
slitting cutting number: 3-5
Min. press line width (mm): 200
Min. pressure line width (mm): 200
Outer diameter of thin blade (mm): 260
Thickness of thin blade (mm): 1
Power (kW): 4
Weight (kg): 1300
Size of configuration (L*W*H): 3050*1791*1130 |
|
|
KMK Printing & Packaging Maschinery, KMK CM1100A, 2024 (Ref.:M6423)
Year: 2024 Size: 450-1650mm
Price: on request
Max. Schneidgeschwindigkeit in Meter
300m/min
Max. Schneidgeschwindigkeit
400 Schnitte/min
Max. Rollendurchmesser
1800mm
Max. Papierbreite
1100mm
Paper cutting thickness
60-550G
(The thickness per sheet needs to be >60
The total thickness of all the paper together needs to be <550G)
Cutting length range
450-1650mm |
|
|
MPS, EF330, 2004 (Ref.:M6270)
Year: 2004 Size: 330 mm
Price: on request
8 x servo driven flexo print stations,
8 x UV dryers,
8 x water cooled chill rolls,
2 x rotary die stations,
Waste rewind,
Edge slitting unit,
Rewind,
BST camera system.
To include:
Magnetics: 80z, 96z, 100z, 104z, 108z, 116z, 124z
Print tooling: 7 x 80z, 5 x 96z, 1 x 104
Anilox x 8 |
|
|
SPS Rehmus, Vitessa Star G2, 1997 (Ref.:M6635)
Year: 1997 Size: 105x75cm
Price: on request
- Manufacturer: SPS
- Model: Vitessa Star G2
- Machine type: Screen printing machine
- Year: 1997
- Equipment:
• Mabeg feeder, model MS
• SPS drying unit, type UV Top 1200, year 1993
• SPS Rehmus automatic stacker, type Autostack S-02, year 1993
• Steel platform and checker plate on pallets
• Control cabinet
• Screen printing frames
- Field of use: Industrial screen printi |
|
|
SPS Rehmus, Vitessa Multistar G2/C, 2001 (Ref.:M6636)
Year: 2001 Size: 70 x 102 cm
Price: on request
- Manufacturer: SPS
- Model: Vitessa Multistar G2/C
- Machine type: Screen printing machine (complete line)
- Year: 2001
- Equipment:
• SPS feeder
• SPS dryer, model TS-M2, year 2001
• SPS automatic stacker, model Autostack ASR 61+G2, year 2001
• Steel platform and checker plate on pallets
• Control cabinets
- Field of use: Industrial screen printi |
|
|
Palamides, Alpha 700, 2007 (Ref.:M6690)
Year: 2007 Size: 800 x 330 mm
Price: on request
Package display Palamides alpha 700
Inlet length max. 800 x 330 mm
Stacking height 16cm
3fold benefit
automatic format adjustment in running direction |
|
|
Palamides, Alpha 700 Plus, 2010 (Ref.:M6691)
Year: 2010 Size: 800 x 330 mm
Price: on request
Package display Palamides alpha 700
Inlet length max. 800 x 330 mm
Stacking height 16cm
3fold benefit
automatic format adjustment in running direction |
|
|
|
|
Stahl, SBP 66.2, 1993 (Ref.:M6693)
Year: 1993 Size: 660 x 300 mm
Price: on request
Format: Maximum sheet width 660 mm, maximum length 300 mm.
Minimum sheet dimensions: 120 x 100 mm.
Product thickness: Maximum 4mm.
Stacking length: Maximum 80 cm.
Pressing force: 8,000 N
Inlet height: Variable from 360 mm to 960 mm. |
|
|
NAGANO, CardExtra NAGEL, 2006 (Ref.:M6206)
Year: 2006 Size: 32 x 65 cm
Price: on request
- **Maximum paper size**: A3 (up to SRA3 format)
- **Functionality**: Multifunction finishing for creasing and cutting
- **Applications**: Ideal for business cards, brochures, and other printed materials
- **Efficiency**: Precise cutting and creasing for quick and accurate workflow |
|
|
KMK Printing & Packaging Machinery, KMK XY-AFG 2600, 2024 (Ref.:M6306)
Year: 2024 Size: 420 x 2600 mm
Price: on request
Max. paper size (A+B) *2 (mm): 2600
Min. paper size (A+B) *2 (mm): 420
Max. carton length A (mm): 900
Min. carton length A (mm): 130
Max. carton width B (mm): 650
Min. carton width B (mm): 80
Max. paper height (C+D+C) (mm): 1200
Min. paper height (C+D+C) (mm): 170
Max. cap size C (mm): 350
Min. cap size C (mm): 50
The minimum height D (mm): 100 |
|
|
KMK Printing & Packaging Machinery, KMK-1300, 2024 (Ref.:M6097)
Year: 2024 Size: 1300 x 1100 mm
Price: on request
max. sheet size 1300 x 1100 mm
min. sheet size 350 x 350 mm
laminate precision +- 1,5 mm
speed 6.000 sheet / hour
total power 12 kW
length 12,5 m
weight 6,8 t
Video in production: https://www.youtube.com/watch?v=2Y4uEs7qX0E |
|
|
KMK Printing & Packaging Machinery, KMK-1300, 2017 (Ref.:M5585)
Year: 2017 Size: 380 x 380 mm
Price: on request
Max. sheet size: 1100 x 1300 mm
Min. sheet size: 380 x 380 mm
Laminate precision: +- 1,0 mm
Speed: 6.000 sheet / hour
Total power: 11,5 kW
Dimension: 11 m x 1.95 m x 2.5 m
Weight: 6,8 t
https://www.youtube.com/watch?v=RAt-qWDbabQ |
|
|
JIGUO, MY-1320A, 2019 (Ref.:M6275)
Year: 2019 Size: 450x400mm
Price: on request
Max. Paper Size: 1320x960mm
Min. Paper Size: 450x400mm
Max. Cutting Size: 1300×940mm
Max. Pressure: 340 Tons
Cardboard: 200-2000g/m2
Corrugated Board: <8mm (max. thickness)
Max. Cutting speed: 6000 sheets/hour
Die-Cutting Precision: ±0.15mm
Min. Gripper Edge: 8mm
Max. feeding Pile Height: 1650mm
Max. Delivery Pile Height: 1500mm
Total power: 27KW
Weight: 18 Tons
Air requirement: 0.8Mpa,>0.36m³/min
Overall Dimension: 7350×4530×2920mm |
|
|
KMK Printing & Packaging Machinery, KMK XY-V 1224, 2024 (Ref.:M6330)
Year: 2024 Size: 1200 x 2550 mm
Price: on request
KMK XY-V Full vacuum transfer flexo printer slotter die cutter machine
Max. print size: 1200*2400
Max. feed size: 1200*2550
Skip feed size: 1400*2550
Min. board width: 350
Print cliché thickness: 3.94-7.2mm
Color register: ±0.5mm
Min. slotting distance (mm):
Electrical slotting: 300*100*300*100
Manual slotting:
Positive: 150*150*150*150
Negative: 300*60*300*60
Die cutting with slotting attachment type:
280*60*280*60
180*180*180*180 |
|
|
KMK Printing & Packaging Machinery, KMK XY-V 1426, 2024 (Ref.:M6331)
Year: 2024 Size: 1400 x 2750 mm
Price: on request
KMK XY-V Full vacuum transfer flexo printer slotter die cutter machine
Max. print size: 1400*2600
Max. feed size: 1400*2750
Skip feed size: 1600*2750
Min. board width: 430
Print cliche thickness: 3.94-7.2mm
Color register: ±0.5mm
Min. slotting distance (mm):
Electrical slotting: 300*100*300*100
Manual slotting:
Positive: 160*160*160*160
Negative: 300*60*300*60
Die cutting with slotting attachement type:
280*60*280*60
180*180*180*180 |
|
|
|
|
|
|
|
|
|
|
|
|
MKS Maschinen Handels GmbH
Lothforster Str. 46, D-41849 Wassenberg-Germany
|
|
